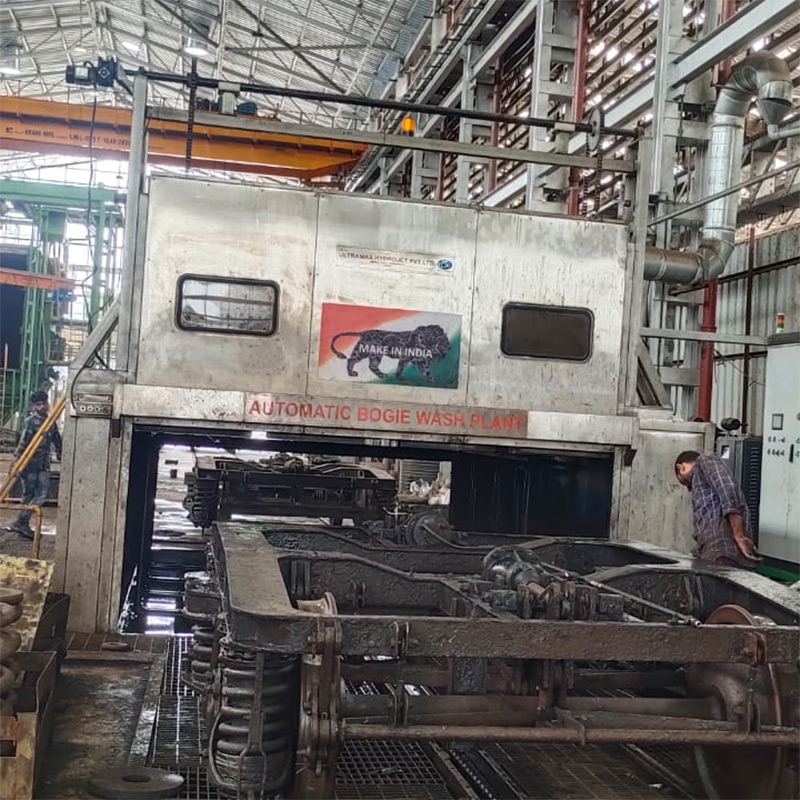

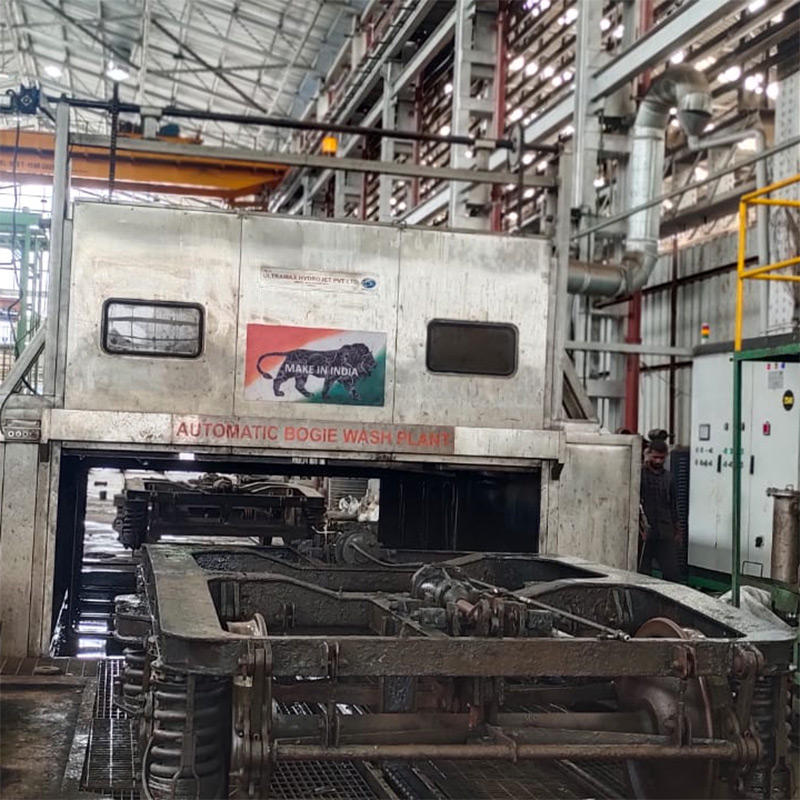

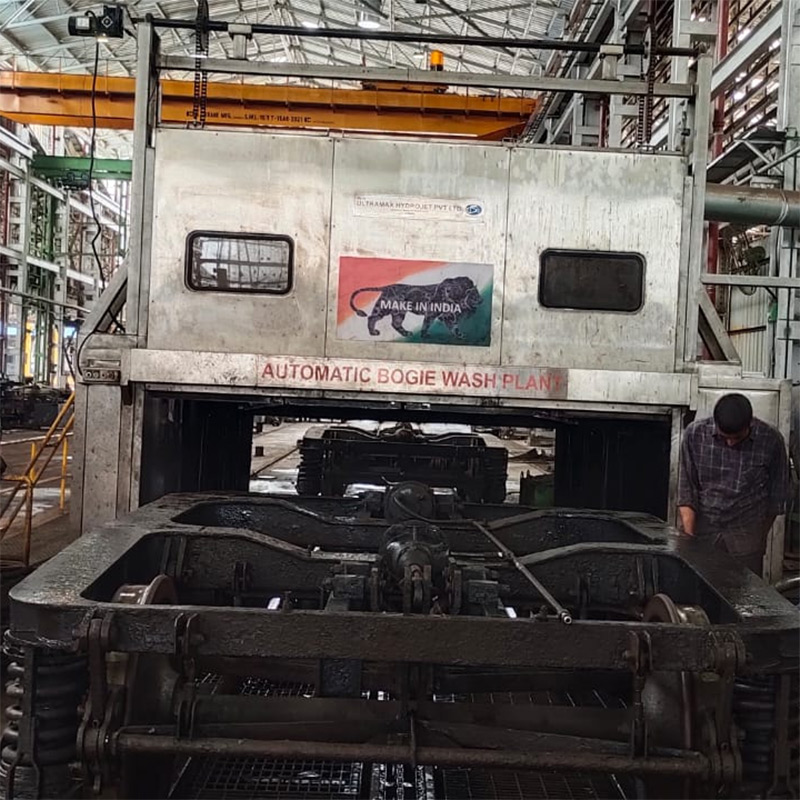

Automatic Bogie Cleaning Plant
Our company provides a comprehensive Bogie Cleaning Plant (Rail Feed Type) designed for locomotive, passenger, and transit car (wagon) bogies. This turnkey solution offers a fully automated process that effectively eliminates all forms of exterior contaminations present in the bogies. This includes primary and secondary coil springs, axle boxes, wheel sets, and all associated accessories within the Bogie shop. By offering an automated process, our plant ensures a thorough and efficient cleaning operation, contributing to the performance, safety, and longevity of bogies. This comprehensive solution underscores our commitment to providing advanced technologies for the railway industry.
- Process : Automated Cleaning process consisting of Spray Washing & Fresh Water Rinsing
- Customers: Railway, Passenger car , Transit car, Metros & Passenger car Rebuilt plants
- Work piece: Bogies of all sizes, passenger car, Transit car , Metros (with Traction motor & without Traction Motor)
- Application: Cleaning of Bogies prior to inspection/Rebuild
- Cleanliness: Meets the cleanliness specifications as per customer requirements
- Productivity: Cleans up to 8 to 12 bogies @ 8 hrs shift operation
- Standard Recirculated wash solution process followed by Fresh water Rinse (or) Recirculated rinse.
- Large Tank capacity for wash solution to increase the time change over of washing solution & to reduce solution foaming
- High pressure & high volume pump which covers entire parts of bogie by washing solution effectively
- High capacity Automated loading & unloading mechanism for handling the bogies in & out of the washing spray cabinet
- Automatic motorized doors on both sides of the cabinet for smooth operation
- Construction of solution tank & spray cabinet by corrosion resistant material of Stainless steel (SS 304).
- Exhaust blower is provided to exhaust the vapor /fumes from the cabinet inside during operation
- Washing cabinet & tanks are insulated to minimize the heat loss
- Automatic sludge removal system to remove the sludge accumulating in the wash tanks regularly which increases the tank clean out extended life
- Automatic oil separator to remove the oil suspended particles from wash solution tank to extends solution life
- Trolley will be provided for handling the bogie frame & bogie components for cleaning
- Heating of wash solution choice by Electric, steam, Gas or hot water by choice of customer
