Ultrasonic Cleaning Machines

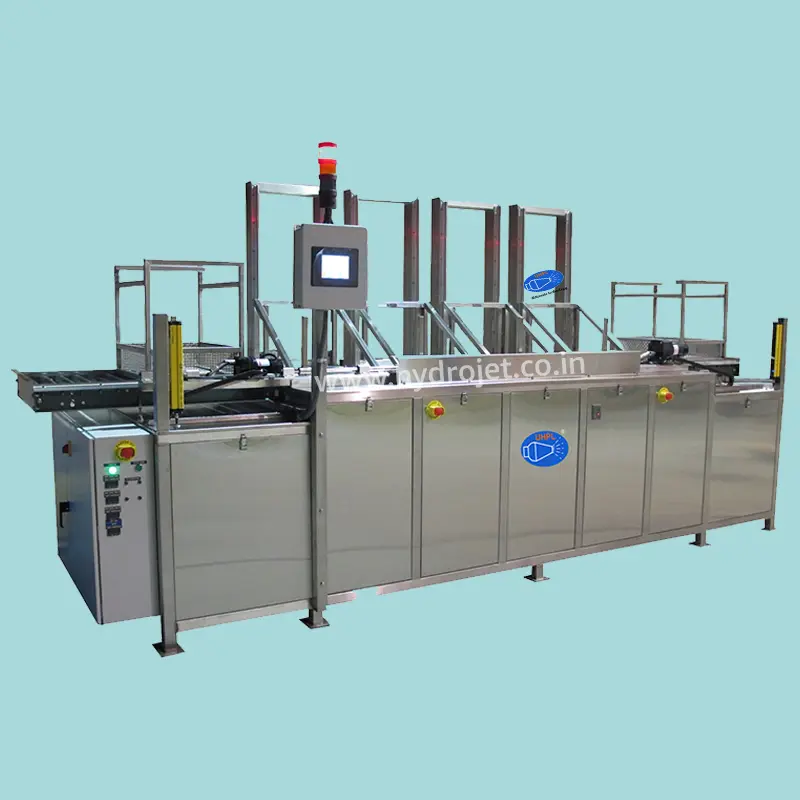

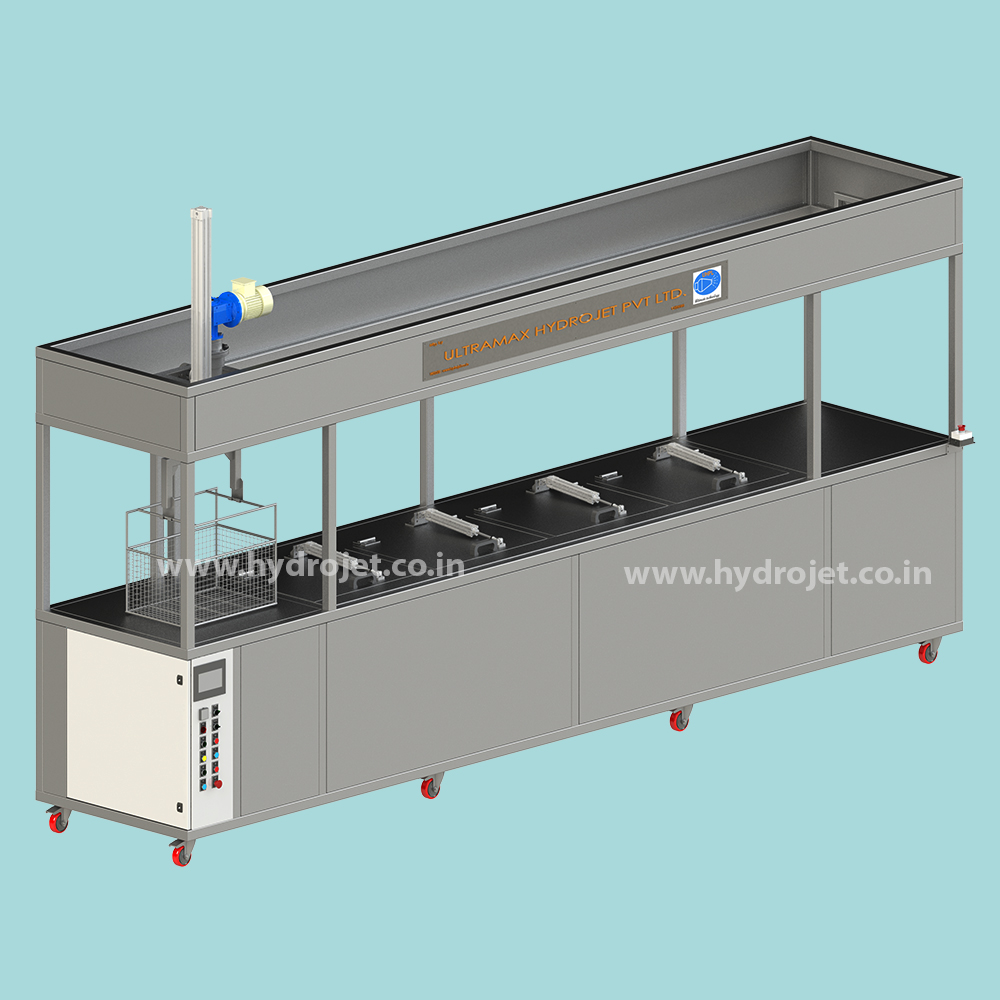

Multi Stage Ultrasonic Cleaning Machine

As one of the top Ultrasonic cleaning machine manufacturers in India, we specialize in providing high-quality solutions for clients requiring precision washes with multiple tanks and efficient part drying. Our Ultrasonic Washing machines are designed to deliver superior cleaning performance.

In our ultrasonic cleaning equipment, components are loaded into a basket and undergo prewashing and spray washing with injection flooding to effectively remove contaminants from their surfaces. The application of ultrasonic frequency further enhances the cleaning process.

After the ultrasonic cleaner operation, the components move on to the rinsing stage, where both spray and submerged operations are employed to remove alkalinity and ensure thorough cleaning. Subsequently, the components are transferred to the drying chamber, where recirculating hot air facilitates effective and efficient drying.

Additionally, our ultrasonic parts cleaner can be equipped with an optional dipping bath, allowing parts to be immersed in rust-preventative fluids to prevent corrosion. With our commitment to quality and innovation, our Ultrasonic cleaning machines cater to diverse industrial needs, delivering reliable and high-performance cleaning solutions for various applications.

We are one of the leading ultrasonic cleaner manufacturers in our ultrasonic cleaning system the following process can be done.

  • Pre spray wash
  • Injection flood wash
  • Ultrasonic cleaning machine
  • Rinse 1 / Rinse 2
  • Hot air dry / Vacuum drying
  • Rust preventive apply
  • Component basket
  • Ultrasonic Transducer
  • Ultrasonic Generator
  • Agitation pneumatic system
  • Re-circulation filtration system
  • High pressure spray pump
  • Automatic component stage movement
  • High pressure blower
  • Vacuum drying
  • Oil separator
  •
  • 20 to 40 Khz Frequency
  • 500 watts to 3000 watts Transducer
  • 50 litres to 200 Litre tank capacity
  • Inconel Heater
  • PLC Controlled Ultrasonic cleaning equipment
  • Complete SS 304 construction
  • Customized design to match component requirement
  • Digital ultrasonic cleaner control
  • Re-circulation pump & Filtration system
  •
